🕹️ Splat Game (Jumping + Button)

⚙️ Step 0 — Switch to Live Mode

Before we begin, make sure your PictoBlox is set to Live Mode.

Toggle Live Mode

🎬 Starter Activity — LED Basics

Watch this short video to refresh your understanding of how LEDs work and what happens when too much voltage is applied.

🧩 Step 1 — Prepare Your Components

Gather the components shown below before you begin wiring your circuit.

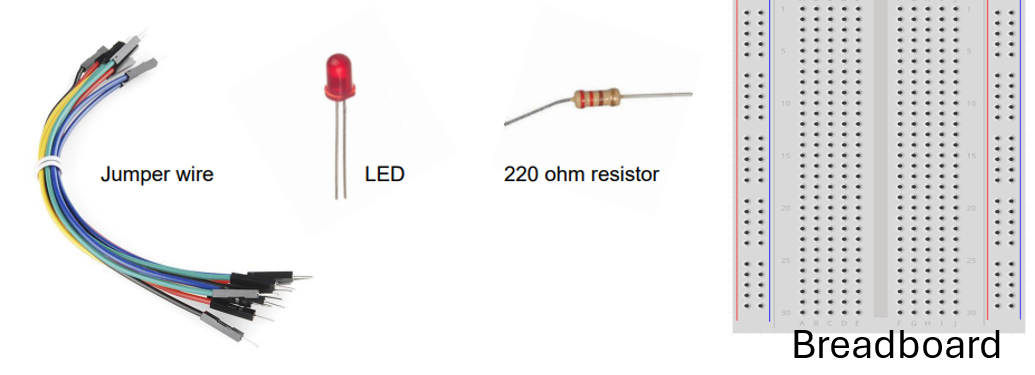

Components

🔌 Step 2 — Build the Circuit

Construct the following circuit on your breadboard.

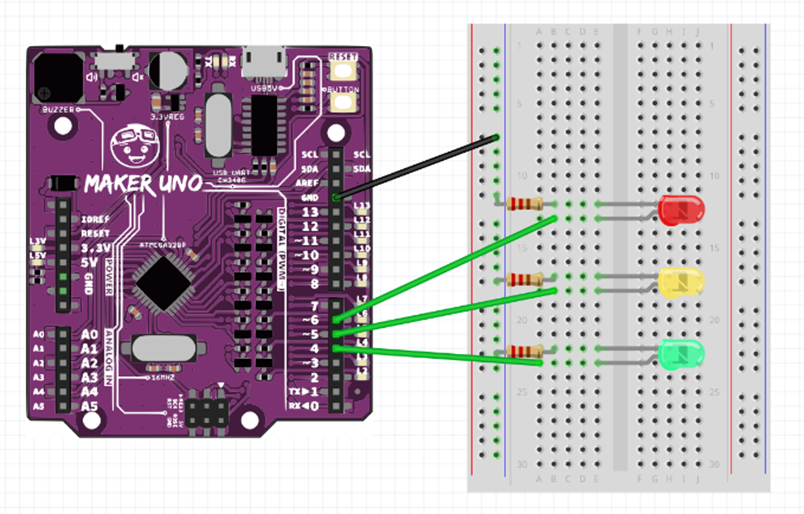

Circuit Diagram

💡 Step 3 — Test the LEDs

Use the following code to test your LEDs.
They should turn on and off in sequence.

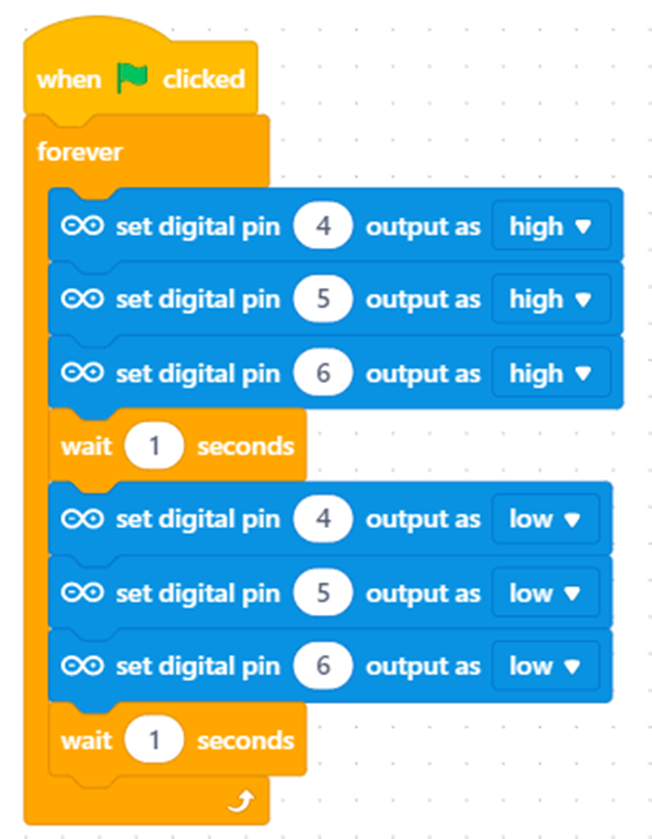

LED Test Code

🚦 Step 4 — Traffic Light Simulation

Now simulate a traffic light system using this code.
Make sure the pin connections are:

  • Pin 4 → Green LED
  • Pin 5 → Yellow LED
  • Pin 6 → Red LED

Traffic Light Circuit

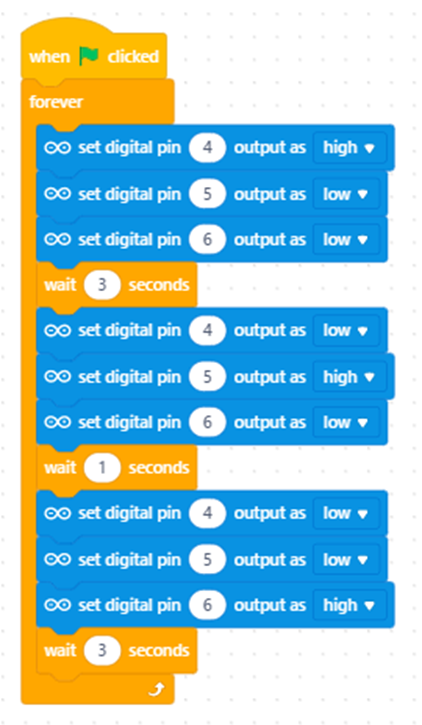

Traffic Light Code

🔁 Step 5 — Running Light (LED Chase)

Create a Running Light effect (also known as the Knight Rider or LED Chase).
Choose any LED colors you like.

Concept:
LEDs light up one by one from left to right, then back again — repeating continuously.

LED Chase Circuit

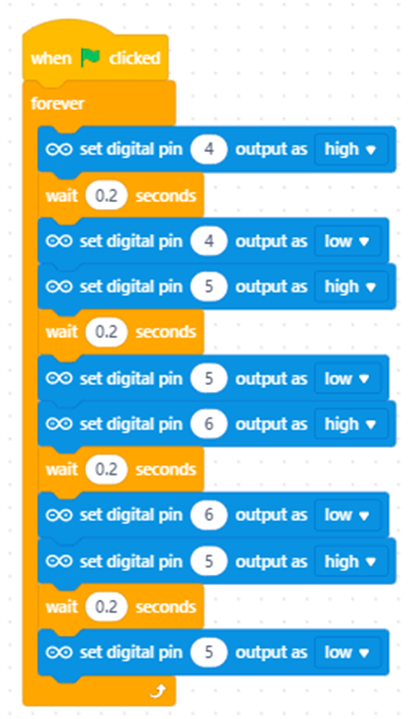

LED Chase Code

✅ Once you’ve completed all the steps, your LEDs should behave as described in each task.
